Wastegate Bracket Bundle for GTX 28 Series Turbos

Adapt your modern Honda’s electronic wastegate system with confidence using our premium Wastegate Bracket Bundle, designed specifically for 10th and 11th gen Civic platforms, any of which utilize an OEM electronic actuator. Whether you're upgrading to a Garrett GTX Gen 1 or Gen 2 turbo, or a compatible knockoff, this kit bridges the gap with precision and strength. Also serves as an upgrade for the aluminum bracket from PRLs discontinued Big Turbo Kit.

Disclaimer: Between different turbos irregularities in the casting can cause the wastegate arm to be too long, if necessary the actuator can be shimmed further away with washers (not included).

Tip: The use of thread locking compound such as Loctite is strongly recommended when installing the set screws onto the actuator arm adapter. this will prevent backing out from vibration and heat cycles.

Key Features:

• Direct Compatibility: Tailored to match the electronic wastegate actuators found on L15B and K20C engines, this bracket system securely adapts them to Garrett GTX internally gated turbos.

• CNC-Machined 304 Stainless Steel: All three main components are milled from billet 304 stainless for superior heat resistance, durability, and rigidity under high boost and thermal cycling.

• Complete Installation Kit: Includes everything needed: two stainless set screws, four stainless Allen bolts.

• Engineered Fit & Finish: Designed for proper actuator alignment and lever arm geometry to preserve factory-style boost control response and actuator force transfer.

• Versatility: Works with OEM actuators from Civic Si, Type R, and other turbo Honda variants using electronic wastegate setups.

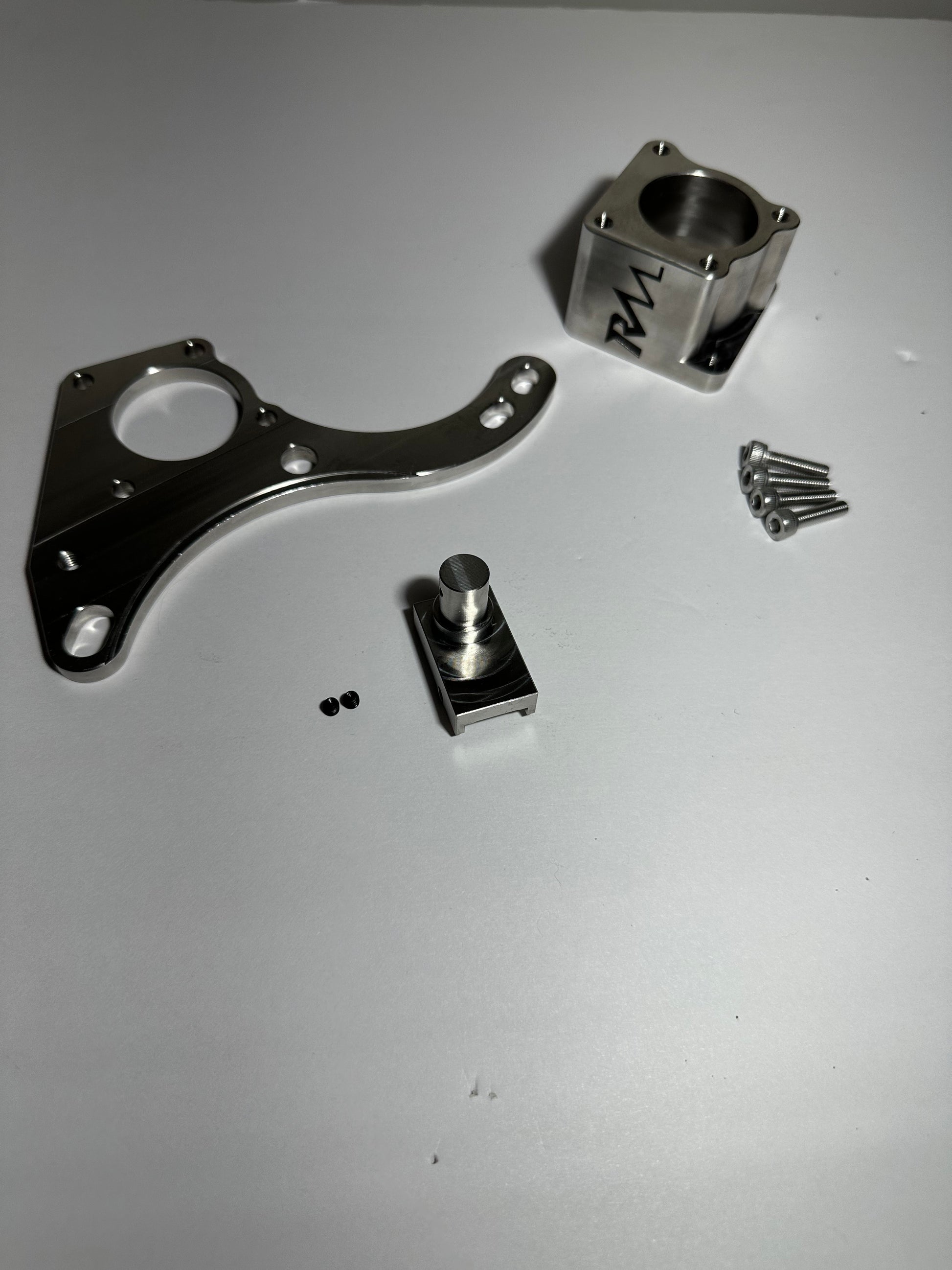

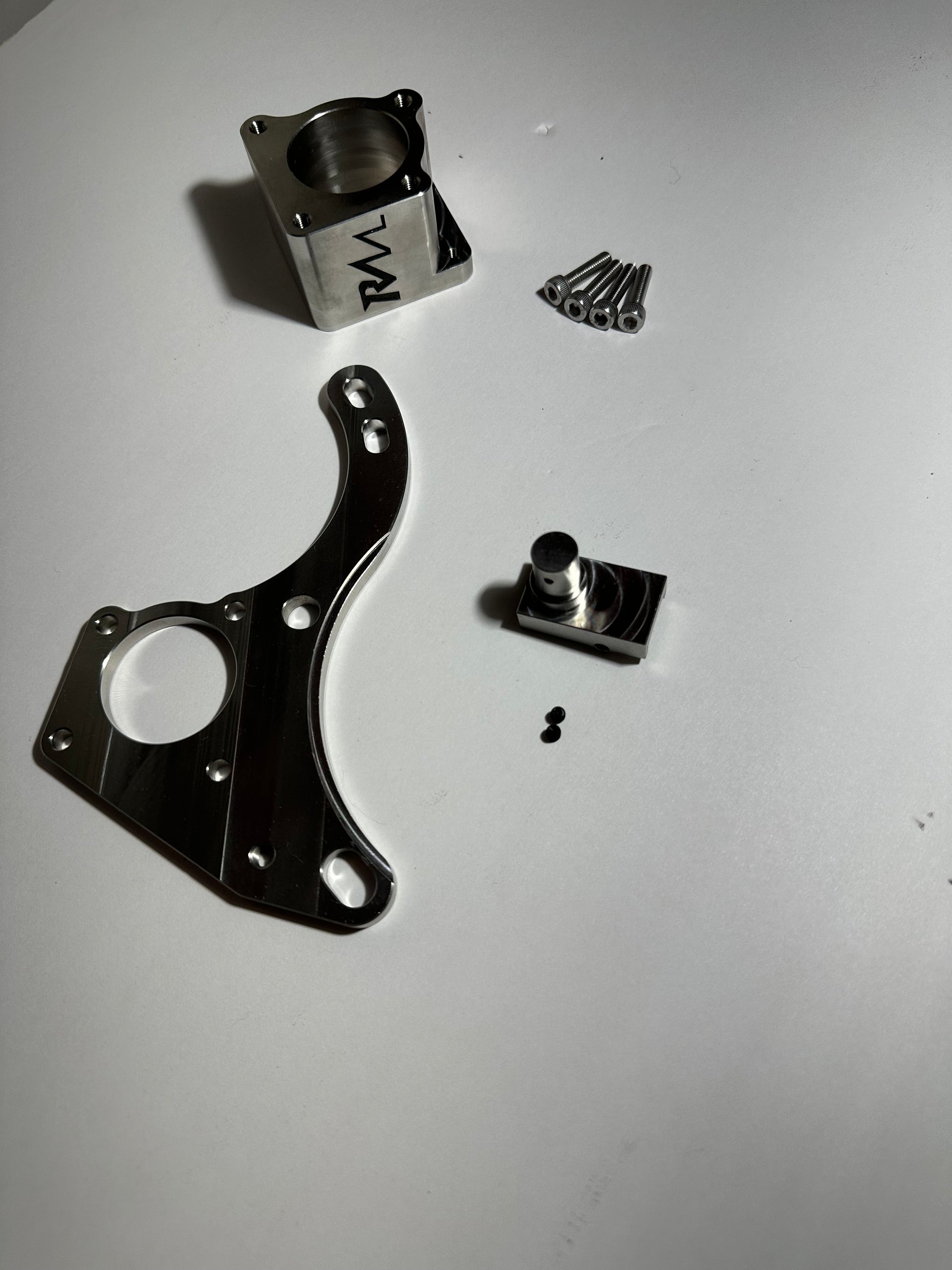

Includes:

• 1x Billet wastegate actuator mount

• 1x Turbo compressor housing bracket

• 1x Actuator arm adapter

• 2x Set screws

• 4x Allen bolts
